1.27 mm x 2.54 mm board-to-board and wire-to-board solutions

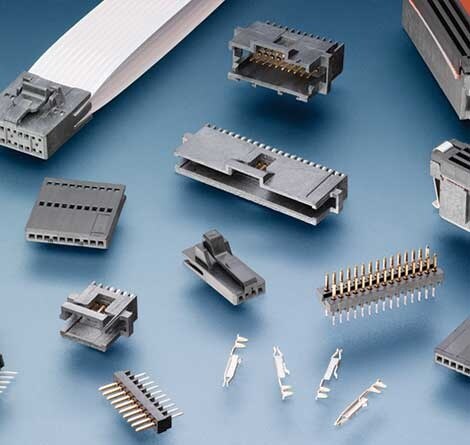

AMPMODU System 50 connectors are high density board-to-board (thru-hole and surface-mount) and wire-to-board connectors, composed of one- and two-row receptacles and headers with a .050" x .100" [1.27 mm x 2.54 mm] pitch. These headers and receptacles have a 3.6 A max current rating and accept 30 - 32 AWG (0.25 - 0.20 mm) wire sizes in an Insulation Displacement Contact (IDC) termination style.

Features

Broad portfolio:

  • Single and double row, trough hole & surface mount, vertical & right angle, shrouded & unshrouded headers, 2 platings, tube & tape & reel, board-mount & cable connectors, tin or tin-lead on tails.



T&R packaging with caps available:

  • Allows automated equipment placement on board.



Positive latch for reliable cable connector mating:

  • Provides for functionality in high-vibe environments.



Board-mount housings from high-temp resin:

  • Reflow solderable.
  • Saving time and money through shared manufacturing processes.



Stand-offs on housings:

  • For removal of solder flux.



Non-protrusive hold-downs:

  • Allows surface mounting on both sides of board.
  • Provides retention during soldering & long-term strain relief for solder joints.

Typical Applications

  • Industrial controls
  • Building and home automation devices
  • Servo drives
  • Programmable logic controllers (PLCs) and other I/O devices
  • Telecommunications equipment
  • Robotics
  • Instrumentation and test equipment
  • Medical equipment
PLC
Contact us to learn more about our Automation Controls solutions, get technical support and samples.
