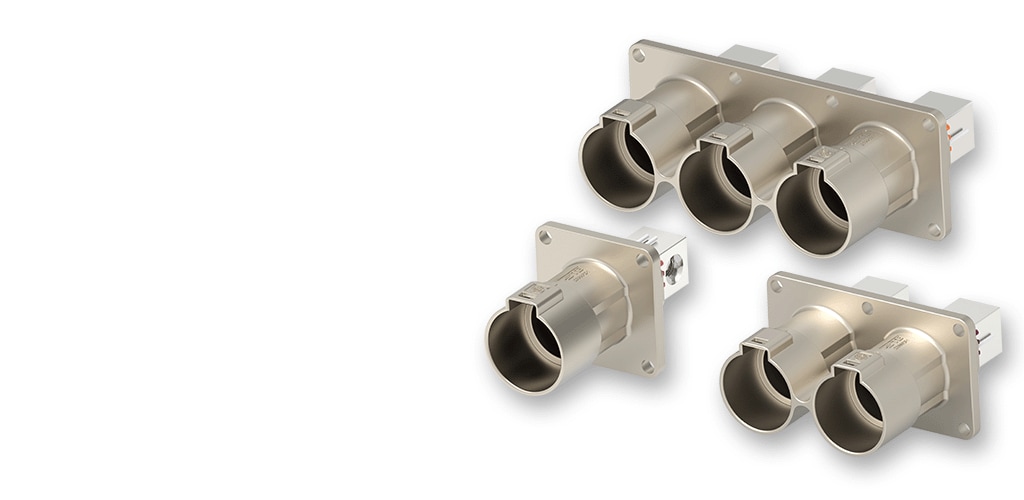

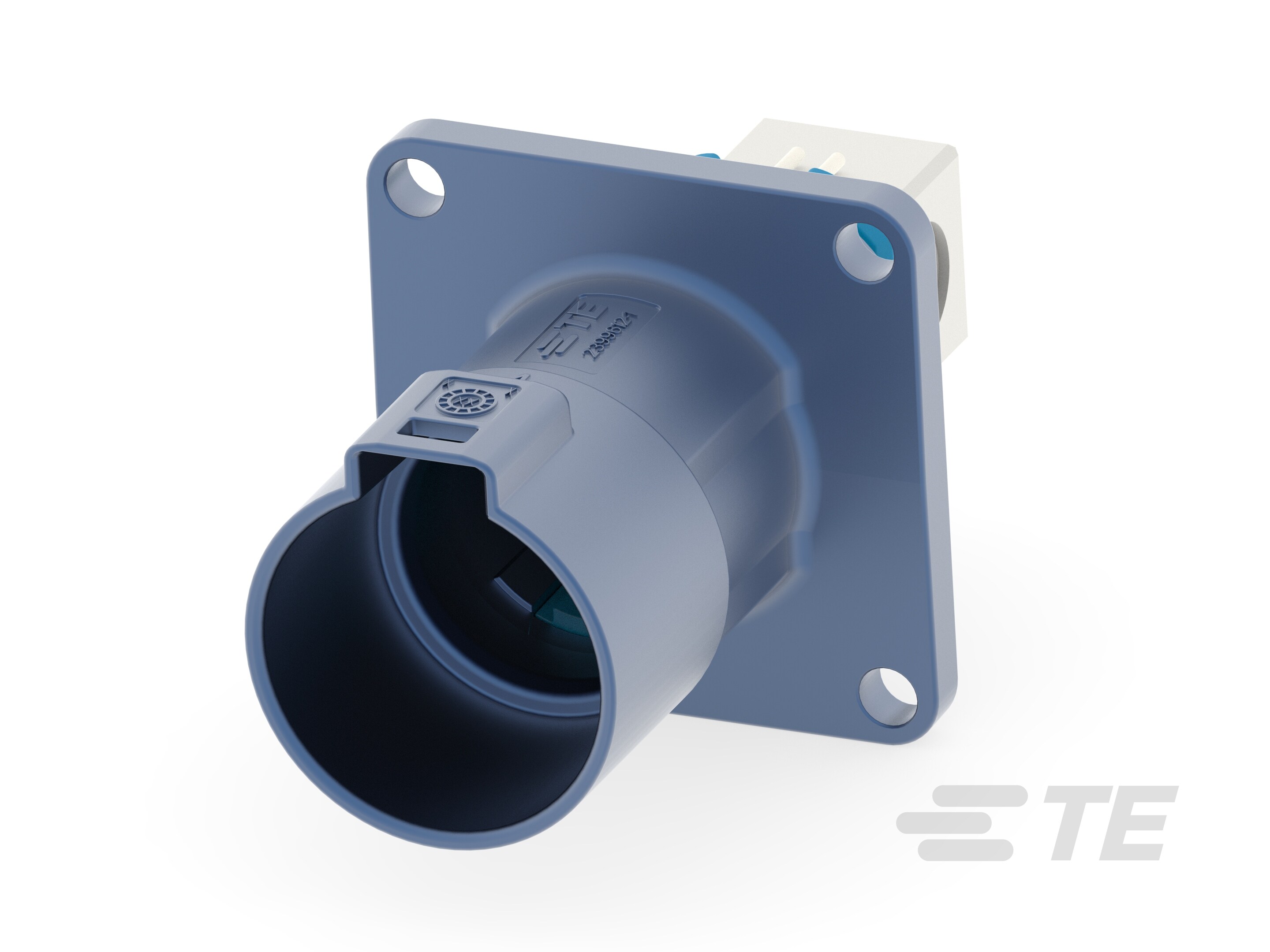

PowerTube HVP-HD 1400 180º Headers
The PowerTube HVP-HD 1400 180º Headers, engineered to deliver high current and high voltage connectivity for demanding industrial and commercial vehicle applications. These robust connectors support up to 580 A continuous current and 1000 V, providing reliable and secure connections for high-power systems. With features like IP67 and IP6K9K protection, High Voltage Interlock Loop (HVIL), and Connector Position Assurance (CPA), the PowerTube HVP-HD 1400 180º Headers offer enhanced safety and performance in harsh environments.
Product Features
-
PCB Mount Orientation : Vertical
-
Connector System : Bus Bar-to-Wire
-
Number of Positions : 3, 1, 2
-
Number of Rows : 1
-
Centerline (Pitch) : 47 mm [ 1.85 in ]
Overview
Key Benefits
PowerTube HVP-HD 1400 180º Headers
- High Current Capacity: Supports up to 580 A continuous current, making it suitable for demanding high-power applications.
- Enhanced Safety: Features HVIL and CPA for secure and safe connections, reducing the risk of accidental disconnections.
- Reliable Performance: Provides consistent performance with IP67 and IP6K9K protection against dust and water ingress.
- Modular Design: Available in multiple configurations and orientations (180º), offering flexibility for various application needs.
- Robust Construction: Withstands engine-level vibration and harsh environmental conditions, promoting long-term durability.
- Efficient Cable Management: 180º orientation aids in efficient cable routing, reducing strain on wires.
- Wide Compatibility: Accommodates larger wire sizes (70 mm² to 150 mm²) and offers multiple color codings for easy identification.
- High EMC Performance: 360° shielding protects against electromagnetic interference, supporting reliable signal integrity.
PowerTube HVP-HD 1400 180º Headers offer high current and voltage connectivity with enhanced safety features for industrial and commercial vehicles.
Key Features
PowerTube HVP-HD 1400 180º Headers
| Feature | |
|---|---|
| Orientation |
180º |
| Current Capacity |
Up to 580 A |
| Voltage Rating | Up to 1000 V |
| Protection | IP67, IP6K9K |
| Safety Features | High Voltage Interlock Loop (HVIL), Connector Position Assurance (CPA) |
| Contact Type | Tab |
| Contact Size | 14 mm round pin |
| Wire Size Compatibility | 70 mm², 95 mm², 120 mm², 150 mm² |
| Shielding | 360° shielding (shield current up to 30% of the main current) |
| Vibration Resistance | ISO 16750-3 profile 7 and profile 9 |
| Number of Positions | 1/2/3 pin on the header side, 1 pin on the connector side |
| Color Coding | 12 color-codings |
| Corrosion Resistance | VDA 233-102 salt spray test |
| Mounting Type | Bus Bar-to-Wire |
| Mating Alignment | Keyed, Polarization Rib |
| Termination Method | Crimp |
| Connector Shape | Circular |
| Primary Product Color | Black, Gray, Green |
| UL Flammability Rating | UL 94HB, UL 94V-0 |
| Operating Temperature Range | -40°C to 140°C (-40°F to 284°F) |
Real World Applications
PowerTube HVP-HD 1400 180º Headers
- Heavy-Duty E-Motor Connectivity: Supports electric motors in industrial and commercial vehicles with higher current needs, handling up to 580 A compared to 300 A in the HVP-HD 1000. Suitable for large electric motors requiring robust and high-power connections.
- Large Battery Pack Integration: Facilitates connections for larger battery packs in electric and hybrid vehicles, accommodating wire sizes up to 150 mm². Suitable for applications where high energy storage and delivery are critical.
- High-Capacity Power Distribution Systems: Supports the distribution of higher voltage power across various subsystems, enabling efficient and safe operation. Designed for systems requiring greater current capacity and higher power distribution.
- High-Power On-Board Chargers: Connects high-power on-board charging systems, promoting safe and reliable battery charging for larger vehicles. Provides the necessary current handling for faster and more efficient charging.
- High-Power Auxiliaries: Supports auxiliary systems requiring high current connections, such as advanced air conditioning units and power steering systems in larger vehicles. Handles higher current loads, providing reliable operation of power-intensive auxiliary systems.
- Inverter Connections for High-Power Systems: Provides secure and efficient connections for high-power inverters in electric and hybrid vehicles. Supports higher power conversion needs, essential for larger and more powerful inverter systems.
- Construction and Agricultural Equipment: Provides durable and secure connections for high-power electrical systems in large construction and agricultural machinery. Handles the higher power requirements of heavy-duty equipment, making it suitable for rugged environments.
- Public Transport Vehicles: Suitable for buses and other public transport vehicles, providing reliable and safe high-voltage connections for larger electrical systems. Supports the higher current demands of public transport systems, providing efficient operation.
- Heavy-Duty Trucks: Supports high-power electrical systems in heavy-duty trucks, enhancing performance under demanding conditions. Accommodates the higher current and voltage needs of larger trucks, enabling robust and reliable connections.
- Marine Applications: Applicable in electric marine vessels, providing robust and reliable high-voltage connections in harsh maritime environments. Designed to handle higher power requirements for large marine vessels, providing secure and efficient power distribution.
PowerTube HVP-HD 1000 Connector Series
e
e
e
PowerTube HVP-HD 1400 Connector Series
e
e
FAQ
PowerTube HVP-HD 1400 180º Headers
Q: What makes the PowerTube HVP-HD 1400 180º Headers suitable for high-current applications?
A: The PowerTube HVP-HD 1400 180º Headers are designed to handle up to 580 A continuous current, accommodating larger wire sizes (70 mm² to 150 mm²). This makes them suitable for high-current applications in industrial and commercial vehicles.
Q: How do the safety features of the PowerTube HVP-HD 1400 180º Headers enhance their reliability?
A: The headers include High Voltage Interlock Loop (HVIL) and Connector Position Assurance (CPA). HVIL helps prevent high voltage circuits from engaging unless the connector is properly mated, while CPA prevents accidental disconnections, enhancing overall safety and reliability.
Q: In what environments can the PowerTube HVP-HD 1400 180º Headers be used?
A: With IP67 and IP6K9K protection ratings, the PowerTube HVP-HD 1400 180º Headers are designed to withstand harsh environments, including exposure to dust and water. This makes them suitable for various applications in industrial and commercial transportation, such as construction equipment, public transport vehicles, and marine applications.
Features
Please review product documents or contact us for the latest agency approval information.
Electrical Characteristics
-
Operating Voltage (VDC) 1000
-
Nominal Voltage Architecture (V) 1000
-
Operating Voltage (VAC) 1000
Body Features
-
Connector & Keying Code J/K, A/B, G, C, B, E/F, A/B/C, K/L/M, M, D/E/F, K, A-B, C-D, L/M, J, G/H/J, C/D, A, G/H, E, D, H, L, F
-
Primary Product Color Brown, Orange, Black, Purple, Yellow, Red, Green, Natural, Blue
Mechanical Attachment
-
Mating Alignment Type Polarization
-
PCB Mount Retention Without
-
PCB Mount Alignment Without
-
Connector Mounting Type Panel Mount
-
Mating Alignment With
Product Type Features
-
Connector Shape Circular
-
Connector System Bus Bar-to-Wire
-
Header Type Header & Push-Push Assembly, Fully Shrouded
-
Sealable Yes
-
Connector & Contact Terminates To Bus Bar
Contact Features
-
Mating Pin Diameter 14 mm [ .55 in ]
-
Contact Mating Area Plating Material Silver (Ag)
-
Contact Type Pin
Usage Conditions
-
Operating Temperature (Max) 140 °C [ 284 °F ]
-
Operating Temperature Range -40 – 140 °C [ -40 – 284 °F ]
Industry Standards
-
IP Rating IP6K9K
-
UL Flammability Rating UL 94V-0
Configuration Features
-
PCB Mount Orientation Vertical
-
Number of Positions 3, 1, 2
-
Number of Rows 1
Termination Features
-
Termination Method to PCB Through Hole - Screw
Housing Features
-
Centerline (Pitch) 47 mm [ 1.85 in ]
Operation/Application
-
Circuit Application Power
Packaging Features
-
Packaging Method Tray
Other
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Reference Number
-
TE Internal Number CAT-AQ4-HHD1400180
