Automotive Low-to-Medium Power Connector Solutions

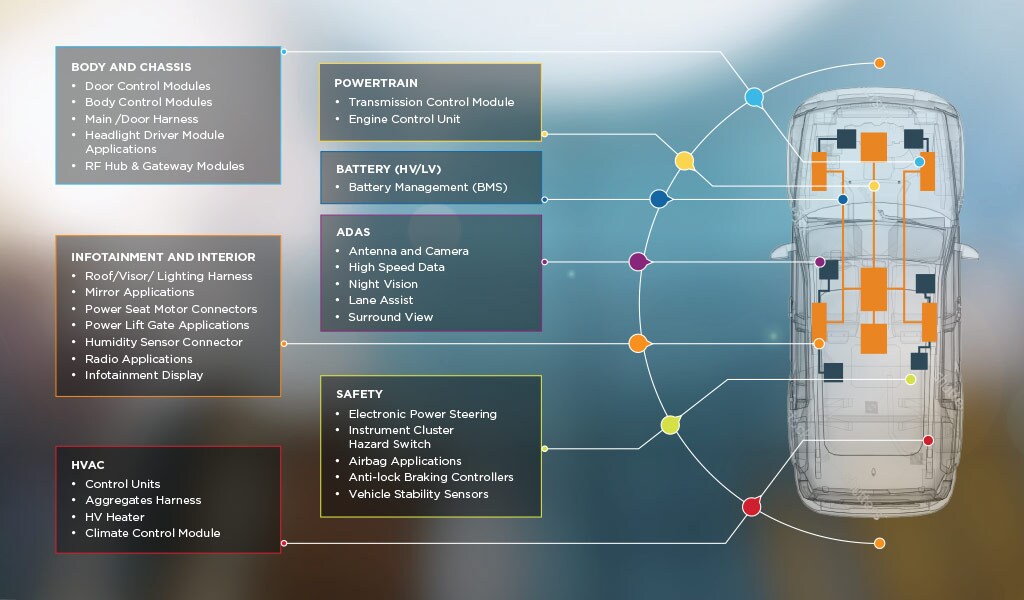

TE Connectivity (TE) provides innovative, flexible, and scalable low-to-medium power connectivity solutions for evolving vehicle architectures. TE’s low-to-medium power portfolio of solutions provides customers with off-the-shelf versatile platforms of high performance, robust and compact sealed and unsealed connectors that are suitable for a wide range of electric and electronic applications for passenger cars and commercial vehicles.

CONNECT WITH US

48 Volt

End-to-end connectivity solutions for 48V Architectures

IPx9k

Weather-proof rating for exterior applications

180°C

Up to 180°C temperature range (with innovative surface technology)

Product Family	Terminals Size	Minimum Pitch	Max. Current @ 80C	Max. Vibration Class	Termination Type	Validated Wire Sizes (mm2)	Sealed/ Unsealed	OEM Specification
MCON	1.2mm	2.5mm	17A	SG4	Crimped	0.5, 0.75, 1.0, 1.5	Sealed/Unsealed	LV214/USCAR
HPF	1.2mm	2.5mm	17A	SG6	Crimped	0.5, 0.75, 1.0, 1.5	Sealed	LV214/USCAR
AMP MCP	1.5mm 2.8mm	4mm 5mm	18A 40A	30g	Crimped	0.2, 0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0	Sealed/Unsealed	LV214/USCAR
MQS	1.5mm	2.54mm	10A	SG3	Crimped	0.35, 0.5, 0.75, 1.0, 1.5	Sealed/Unsealed	LV214/USCAR
SUPERSEAL	1.5mm	2.54mm	14A	20g	Crimped	0.35, 0.50, 0.75, 1.50, 2.5	Sealed	LV214/USCAR
Sealed Sensor Connectors	1.8mm	5mm	17A	USCAR	Crimped	0.5,0.75, 1.5, 2.0	Sealed	USCAR
MultiLock	1.8mm 2.3mm	3.5mm	10A 15A	SG3	Crimped	0.20,0.30, 1.25, 2.0	Sealed/Unsealed	LV214/USCAR
MPQ (Micro Power Quadlock)	2.8mm	5mm	26A	SG4/20g	Crimped	0.35,0.5, 0.75, 1.0, 1.5, 2.0, 2.5, 4.0	Sealed/Unsealed	LV214/USCAR
Timer	2.8mm	5mm	23A	15g	Crimped	0.35,0.5, 0.75, 1.0, 1.5, 2.5, 4.0	Sealed/Unsealed	LV214/USCAR

This product table can only be viewed on desktop.

Product Family	Terminals Size	Minimum Pitch	Max. Current @ 80C	Max. Vibration Class	Termination Type	Validated Wire Sizes (mm2)	Sealed/ Unsealed	OEM Specification
AMP MCP	6.3mm 9.5mm	8mm (unsealed) 12.5mm (unsealed) 16.5mm (sealed)	52A 78A	30g Class 1	Crimped	0.2, 0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0	Sealed/Unsealed	LV214/USCAR
Timer	6.3mm 9.5mm	7.5mm 11.5mm	33A 55A	20g	Crimped	0..35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0	Sealed/Unsealed	LV214/USCAR
NG	6.3mm 8mm 12mm	11.6mm 8.4mm 15.7mm	45A 90A 133A	15g 25g	Crimped/Welded	2.5, 4.0, 6.0	Unsealed	French OEM’s
MCON	8mm 9.5mm 12mm	15.7mm 16.5mm	109A 78A 179A	SG3 SG4 Class1	Crimped/Welded	2.5, 3.0, 4.0, 5.0, 6.0, 8.0, 10, 12, 16, 20, 25, 30, 35	Sealed/Unsealed	LV214/USCAR
