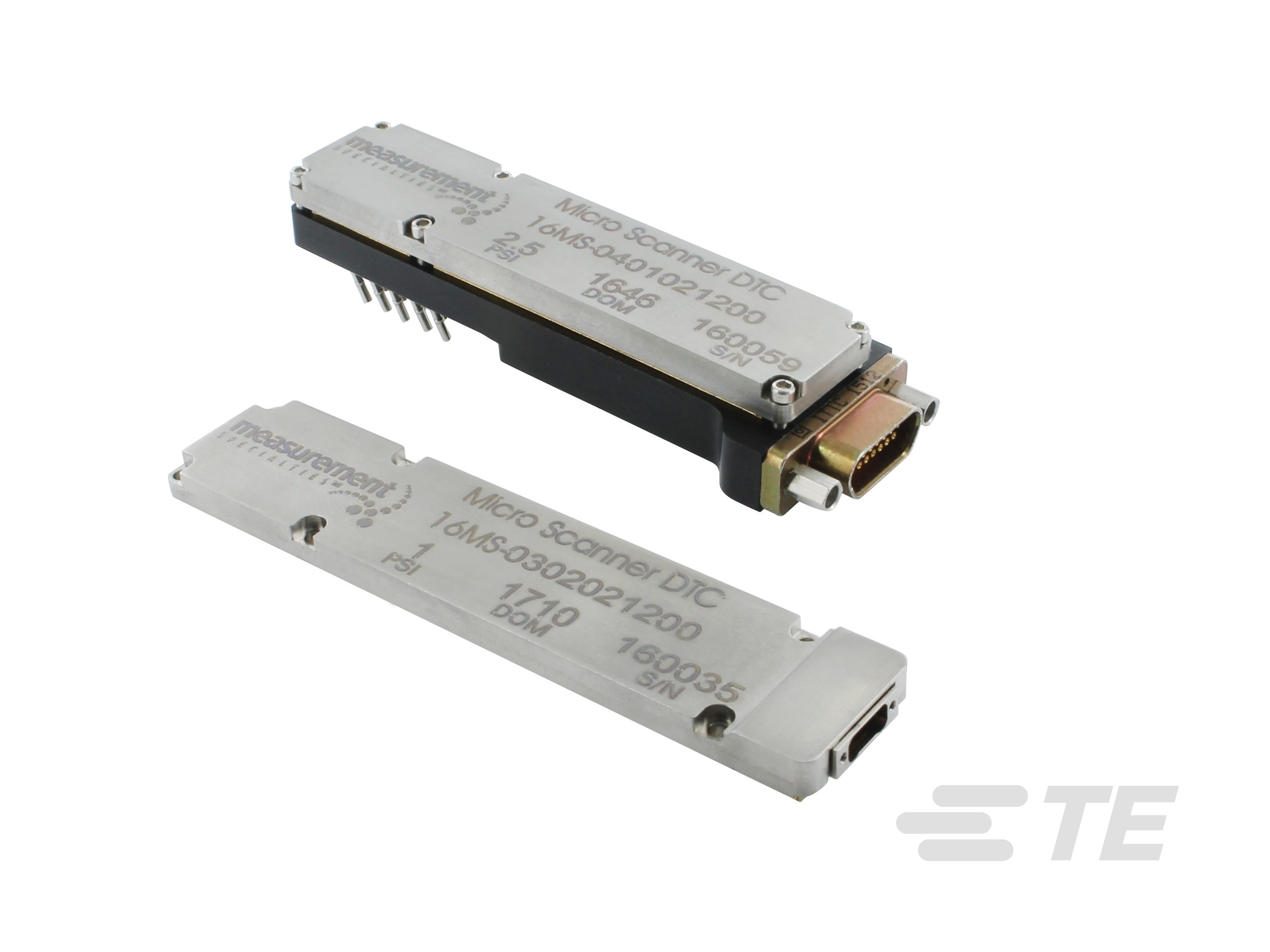

MicroScanner 16MS Pressure Scanner

MicroScanner 16MS Pressure Scanner-CAT-SCS0013
  • MEAS
The 16MS series electronic pressure MicroScanner is an evolution of our Pressure Systems ESP Scanners and provides pressure scanning capability in previously inaccessible locations.
More Less

Product Features

  • Accuracy (% of FS): ±.05

  • Media Compatibility : Dry Gas

  • EU Throughput Rate HZ : 100000

  • Number of Channels : 16

  • DAQ Scanner Product Type : Pressure Scanners

Available from

LADD Inc
Overview
Utilizing proprietary Digital Temperature Compensation (DTC) technology, each 16MS MicroScanner is factory calibrated to compensate for non-linearity and temperature errors.

The 16MS is available in a standard manifold mount version and a direct-mount version, which benefits those desiring to mount the scanner directly into the model surface for a flusher mounted configuration.  Utilizing proprietary Digital Temperature Compensation (DTC) technology, each 16MS MicroScanner is factory calibrated to compensate for non-linearity and temperature errors. The result is a highly accurate measurement with minimal thermal sensitivity. An optional dual range calibration provides two ranges of operation to increase measurement sensitivity, expand testing conditions and reduce user inventory management. The 16MS electronic pressure MicroScanner is automatically identified at power up and is compatible with existing data systems such as Initium, Optimus, 8400, and FDS Flight Data System. Numerous third party integrators provide compatible data systems. An option for calibrating and operating with ±5-volt power instead of ±12-volt is available for use with low voltage systems.

Benefits

  • Small Size
  • High Scan Rate
  • DTC Interface
orange bar

Applications

  • Wind Tunnel Models
  • Dynamic Pressures
  • F1 and Automotive
orange bar

Other Pressure Scanners & Systems









esp-16hd electronic pressure scanner

ESP-16HD Series

ELECTRONIC PRESSURE SCANNER 16HD

The ESP-16HD series 16 channel electronic pressure scanners are miniature electronic differential pressure measurement units consisting of an array of silicon piezoresistive pressure sensors, one for each pressure port.

esp-32hd electronic pressure scanner

ESP-32HD Series

ELECTRONIC PRESSURE SCANNER 32HD

The ESP-32HD series 32 channel electronic pressure scanners are miniature electronic differential pressure measurement units consisting of an array of silicon piezoresistive pressure sensors, one for each pressure port.
esp-64hd electronic pressure scanner

ESP-64HD Series

ELECTRONIC PRESSURE SCANNER 64HD

The ESP-64HD series 64 channel electronic pressure scanners are miniature electronic differential pressure measurement units consisting of an array of silicon piezoresistive pressure sensors, one for each pressure port.

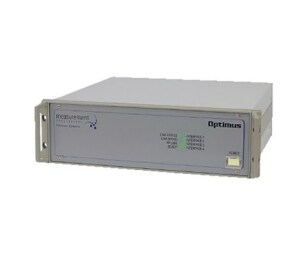

optimus data system

OPTIMUS Series

OPTIMUS DATA SYSTEM

The Optimus Data System is a pressure scanning solution designed specifically for wind tunnel test and measurement applications.
903x netscanner pressure calibration system

903X Series

NETSCANNER PRESSURE CALIBRATION SYSTEM

The 903x series NetScanner pressure calibration system features compact pressure calibrators with set-point control accuracy of up to ± 0.01% FS that are also capable of extraneous pressure measurement.
9116 netscanner pneumatic pressure scanner

9116 Series

NETSCANNER PNEUMATIC PRESSURE SCANNER

The 9116 series NetScanner pneumatic intelligent pressure scanner is a completely self-contained high-performance pressure acquisition module for multiple measurements of dry, non-corrosive gases.
9216 series netscanner pneumatic px scanner w ptp

9216 Series

NETSCANNER PNEUMATIC PX SCANNER W PTP

The 9216 series NetScanner pneumatic intelligent pressure scanner with PTP is a completely self contained high performance pressure acquisition module for multiple measurements of dry, non-corrosive gases.
9916 series rackmount pressure scanner

9916 Series

RACKMOUNT INTELLIGENT PRESSURE SCANNER

The NetScanner 9916 Rackmount intelligent pressure scanner integrates 16 silicon piezoresistive sensors with a microprocessor.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • DAQ Scanner Product Type  Pressure Scanners

Electrical Characteristics

  • Media Compatibility  Dry Gas

Signal Characteristics

  • Number of Channels  16

Usage Conditions

  • Accuracy (% of FS) ±.05

Other

  • EU Throughput Rate HZ  100000

Reference Number

  • TE Internal Number CAT-SCS0013
