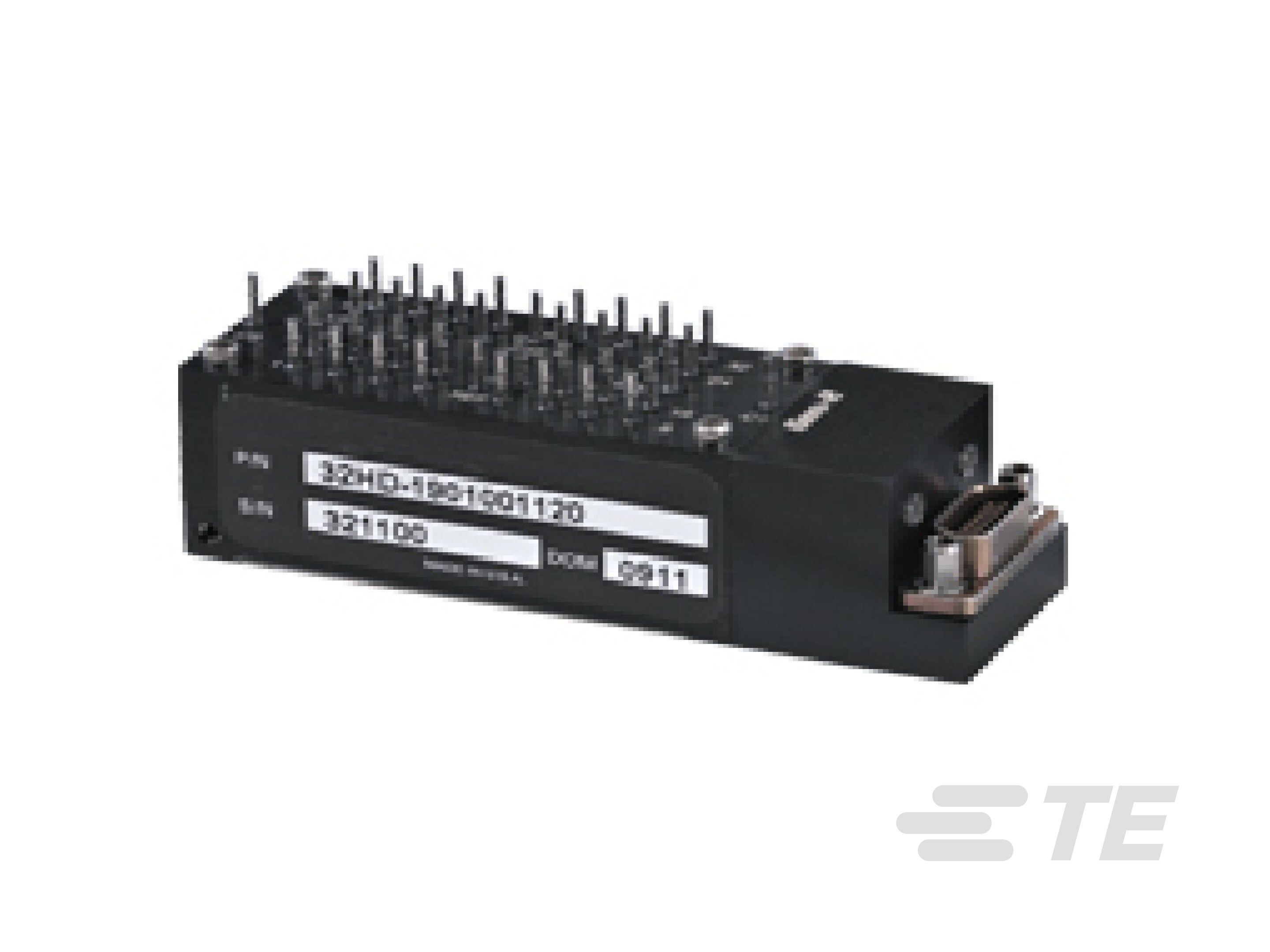

ESP 32HD Pressure Scanner
- MEAS
The ESP-32HD series 32 channel electronic pressure scanners are miniature electronic differential pressure measurement units consisting of an array of silicon piezoresistive pressure sensors, one for each pressure port.
Product Features
-
Accuracy (% of FS): ±.03
-
IP Rating : IP50
-
Media Compatibility : Dry Gas
-
EU Throughput Rate HZ : 325
-
Number of Channels : 32
Overview
The ESP-32HD series electronic pressure scanner offers individual offset and thermal zero compensation.
The sensors within the ESP-32HD 32 channel electronic pressure scanner are mounted on a common hybrid ceramic substrate using a proprietary technique which maximizes long term stability. The outputs of the sensors are electronically multiplexed through a single onboard instrumentation amplifier at rates up to 70,000 Hz using binary addressing. The multiplexed amplified analog output is capable of driving long lengths of cable to a remote A/D converter.
Benefits
- Unparalleled Long Term Stability
- Digital Temperature Compensation (DTC)
- Individual Offset and Thermal Zero Compensation
- Automatically Switched Reference Pressures
- Optional Isolated Purge Capability
- Optional Temperature Sense Output
Applications
- In-Model wind tunnel testing
- Aircraft Flight testing
- Automotive track testing
Other Pressure Scanners & Systems
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
DAQ Scanner Product Type Pressure Scanners
Electrical Characteristics
-
Media Compatibility Dry Gas
Signal Characteristics
-
Number of Channels 32
Usage Conditions
-
Accuracy (% of FS) ±.03
Industry Standards
-
IP Rating IP50
Other
-
EU Throughput Rate HZ 325
Reference Number
-
TE Internal Number CAT-SCS0066
