Modular Hybrid Connector Solution for High Power Control Units
MHS Modular Hybrid System for Next Generation E/E Architectures
TE Connectivity’s (TE) Modular Hybrid System (MHS) is designed to meet the requirements of next-generation E/E architectures and the specific needs of powerful centralized and zone control units.
40%
Up to 40% reduced space saving and weight reduction.
3-in-1
Supports signal, power and data connectivity.
Zonal
Designed for the needs of next generation centralized and zonal E/E architectures.

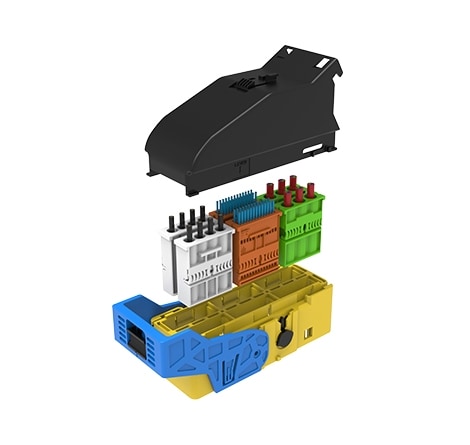

TE’s new Modular Hybrid System (MHS) incorporates a range of connector modules, based on both TE and market-compatible interfaces, for signal, data, and power connections. Each module fits seamlessly together and can be “click” assembled in a modular fashion within a common frame. Each TE connector module contains terminals approved by multiple OEMs and that meet LV214 and USCAR automotive requirements for robustness (temperature/vibration) and connector assurance. In addition, our range of signal and power connector modules have been validated for automated assembly readiness and are designed and manufactured using the latest sustainable materials and recycling processes.
Key Advantages
- One-Stop-Solution
- Modular Hybrid System: supporting signal, data, and power connectivity.
- Standard modules for terminals and acceptable housings supports flexibility /ease-of-design.
- Modular design supports semi /automated production of (sub-) harnesses
- Up to 40% space saving and weight reduction.
- Based on qualified TE low voltage terminal systems
- Manufactured with sustainable resins, and optimized surface technology.
Modular Hybrid Signal and Power Connector Modules
Modular Hybrid Signal and Power Connector Modules
*USCAR / ** LV214Interface
|
Terminal Size
|
Positions
|
Max Current @80C
|
Operating Tempratures
|
Validated Wire Sizes (mm2)
|
Max Vibration Level
|
Surface Plating
|
0.50mm |
26 |
7 Amps |
-40C - +170C |
0.13 – 0.35 |
SG2** |
Sn/Ag/Au |
|
0.63mm |
18 |
7.5 Amps |
-40C - +140C |
0.08, 0.2, 0.35, 0.5, 0.75 |
Class 1-3* |
Sn/Ag/Au |
|
0.64mm |
18 |
10.5 Amps |
-40C - +140C |
0.13 – 0.75 |
Class 1-2* |
Sn/Ag |
|
1.2mm |
14 |
17 Amps |
-40C - +150C |
0.5, 0.75, 1.0, 1.5 |
SG4** / Class4* |
Sn/Ag/Au |
|
2.8mm |
4 |
42 Amps |
-40C - +180C |
0.2,0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 |
30g max. (LV214/USCAR) |
Sn/Ag/Au/ Ag+/ GreenSilver |
|
4.8/6.3mm |
3 |
52 Amps |
-40C - +180C |
0.35, 0.5, 0.75, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0 |
30g max. (LV214/USCAR) |
Sn/Ag/Au/ Ag+/ GreenSilver |
|
1.2mm/0.63mm |
4+12 |
17 Amps |
-40C - +140C |
0.08, 0.2, 0.35, 0.5, 0.75, 1.0, 1.5 |
SG4** / Class4* |
Sn/Ag/Au |
This product table can only be viewed on desktop.
Modular Hybrid Data Connectivity Modules
Interface
|
Positions
|
Media
|
Protocols
|
Speed
|
Applications
|
3 |
Twisted Pair (Shielded & Unshielded) |
100/1000BASE-T1 2.5/5/10/25GBASE-T1 |
Up to 25 Gbps (NRZ) 56 Gbps (PAM-4) |
Autonomous Driving Radar/Lidar |
|
4 |
Coaxial |
SerDes: GMSL2/3, FPDIV, APIX3, MIPI Analog (Antennas) |
12Gbps (NRZ) 24Gbps (PAM4) |
4K Cameras Sensors Hi-Res. Displays |
|
2+1 |
Star Quad Wire Twisted Pair (Shielded & Unshielded) |
SerDes: GMSL1, FPDIII, APIX2, USB 2.0 100/1000BASE-T1 2.5/5/10/25GBASE-T1 |
Up to 6 Gbps (dual channel) Up to 25 Gbps (NRZ) 56 Gbps (PAM-4) |
Legacy Infotainment Dashboard Touch Screens Autonomous Driving Radar/Lidar |
This product table can only be viewed on desktop.
Connector Frames
